Microtec M197 ECU + M196 programming cable kit for Ducati - Replaces Marelli 5.9/5AM (no tech support)

Code M197 + M196 Kit
£0.00
£984.00
Inc VAT
£820.00
Exc VAT
Click the image to enlarge
Code M197 + M196 Kit
£0.00
£984.00
Inc VAT
£820.00 Exc VAT
Save
Earn 0 reward points with this product.
  • Description

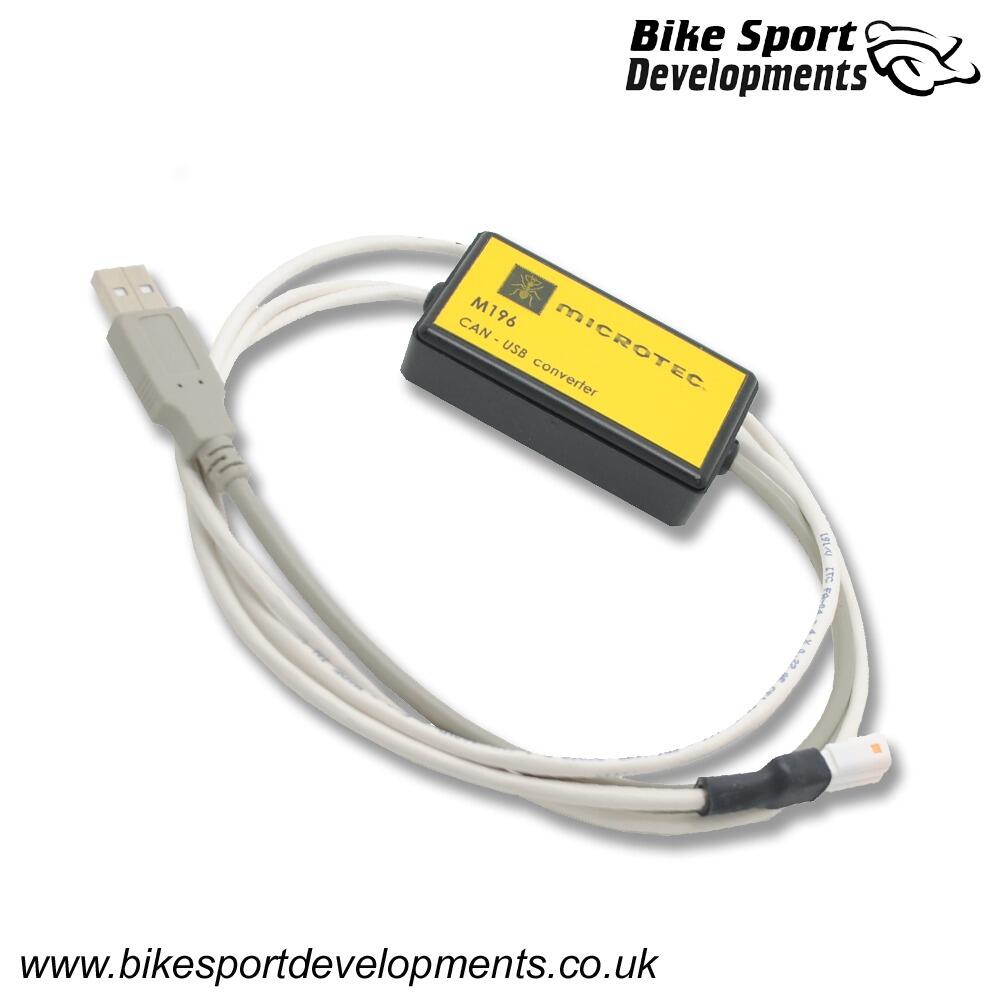

    Microtec M197 'plug n play' ECU for Ducati + M196 programming cable


    The M197 ECU is a quick and simple replacement for the Magneti Marelli 5.9 or 5AM ECU which was fitted as standard to all of the following bikes. No re-wiring is necessary, just plug it in and load the correct maps from the library

    Your ECU will come loaded with a bench test map unless you specify via the options menu that you wish us to pre-load one for you. The will still however need the TPS to be set using the cable and Microtec software.

    Software is supplied free of charge from a download link sent via Email on completion of the order.

    This sale excludes the normal technical support and is intended for users who are already familiar with this product.

    --

    Compatible with the following bikes


    • Hypermotard  1100 , 2008-on

    --

    • Monster
      • 400 , 2003-07
      • 620 , 2002-06
      • 695 , 2007
      • 750 , 2002
      • 800 , 2003-04
      • 900 , 2002
      • 1000 , 2003-05
      • S2R 800 , 2005-07
      • S2R 1000 , 2006-07
      • S4 , 2002-03
      • S4R , 2004-08

    --

    • Multistrada
      • 620 , 2005-06
      • 1000 , 2004-06
      • 1100 , 2007-08
      • Sport Classic

    --

    • GT1000 2007-09

    --

    • Paul Smart 1000 , 2006

    --

    • Sport 1000 2006-09

    --

    • Sport Touring
      • ST2 , 2002-03
      • ST3 , 2004-07
      • ST4 , 2002-05

    --

    • Streetfighter
      • 1098 , 2009-on
      • S-1098 , 2009-on

    --

    • Supersport
      • 620 , 2003
      • 750 , 2002
      • 800 , 2003-07
      • 900 , 2002
      • 1000 , 2003-06

    --

    • Superbike
      • 749 / 999 - all models
      • 848 - all models
      • 998 - 2002-04
      • 1098 - all models, including R with DTC support
      • 1198 - all models, including DTC support

    --

    Notes:

    • Housing is made from ABS plastic with a machined aluminium back panel to install directly onto the standard mounting positions.
    • Kit includes, ECU, short adaptor wire to link with the M196 programming cable, all are included in this kit.
    • This product can also be installed at our workshop - ask for a quote
    • Custom dyno mapping is available with our 'double input' closed loop mapping equipment - ask for a quote
    • Race wiring looms are available for this product in just about any configuration - ask for a quote
