Make : Yamaha

Model : MT09

Model : 2024 onward

Part Number : BD-SW-6BC-92

Number of switch functions : 6

Position : Left side

Road or Track : Track only

Mounting type : Mounts directly onto the handlebar using our generic 22mm clamp, or direct to the clutch post

Download the product : DATASHEET

--

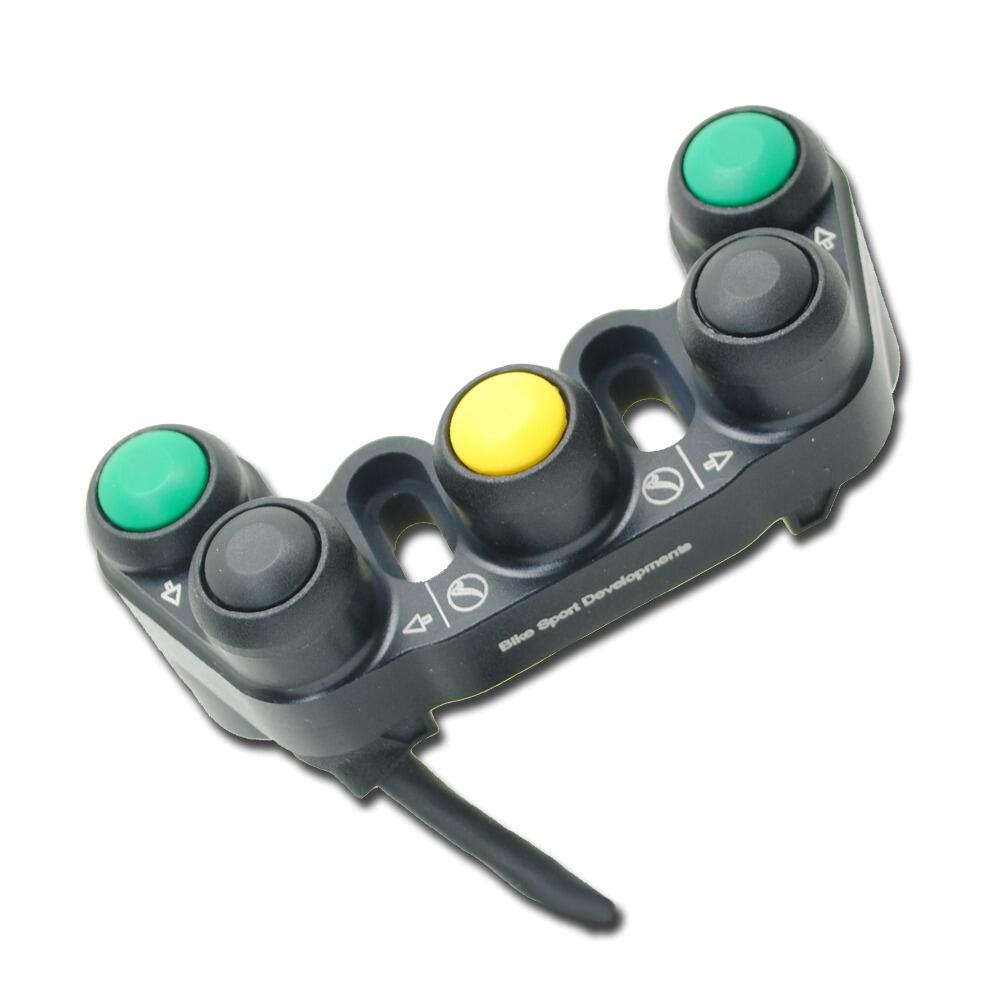

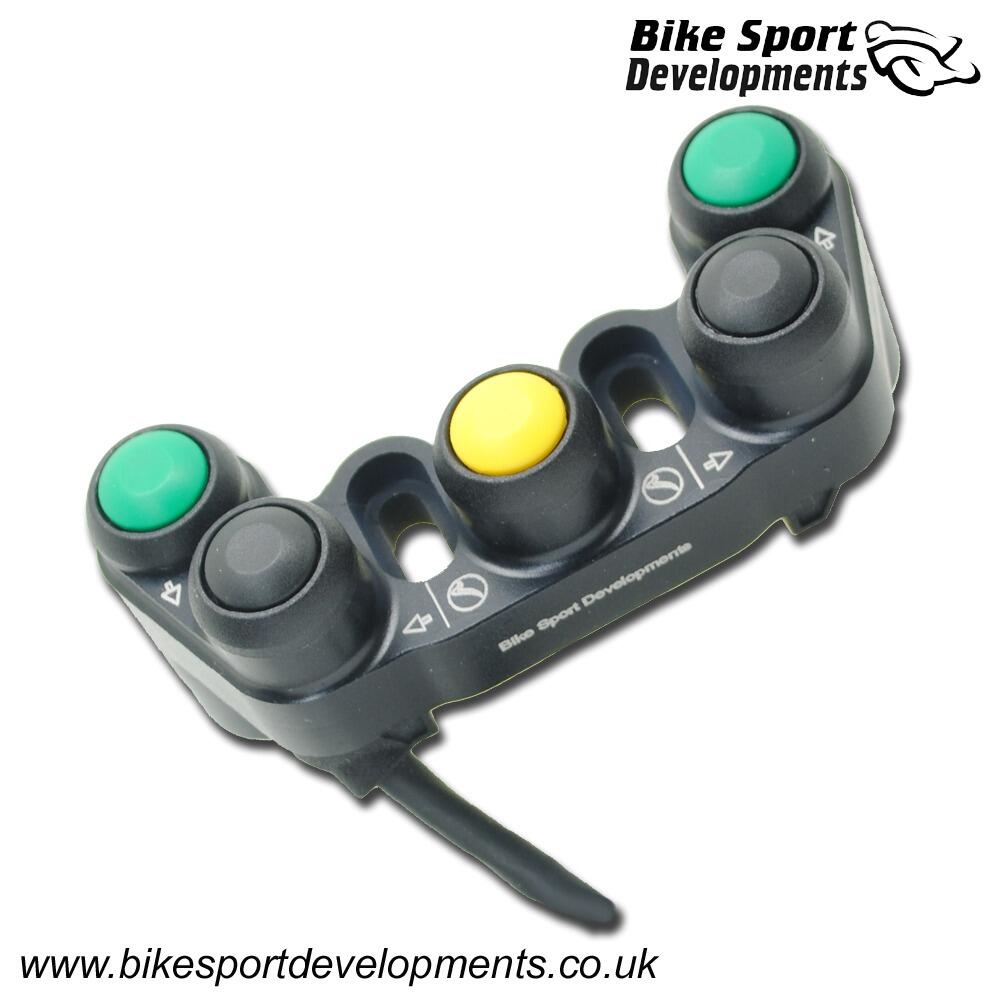

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

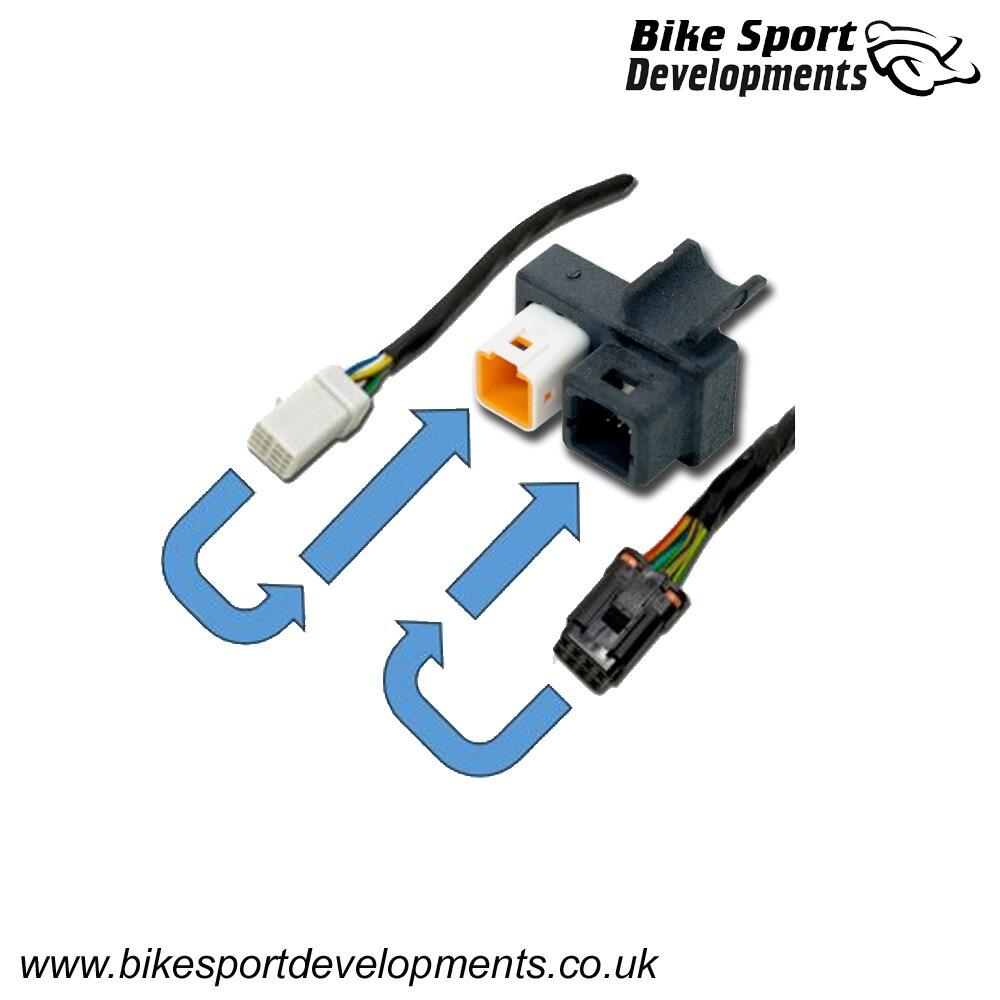

Direct 'plug n play' wiring connection to the standard loom via our small interface module.

--

Functions :

• Up
• Left
• Select
• Right
• Down
• Home

--

These 'Type c' switches can mount onto the clutch post or master cylinder, but for MT09 applications we provide the BR-G clamp to achieve maximum position adjustment.

One clamp is supplied free with each switch, with the default clamp being the BR-G, but you are free to choose an alternative clamp at the time of ordering at no extra cost. For clutch mounting on the MT09 choose clamp CL-A

We have clutch clamps for:

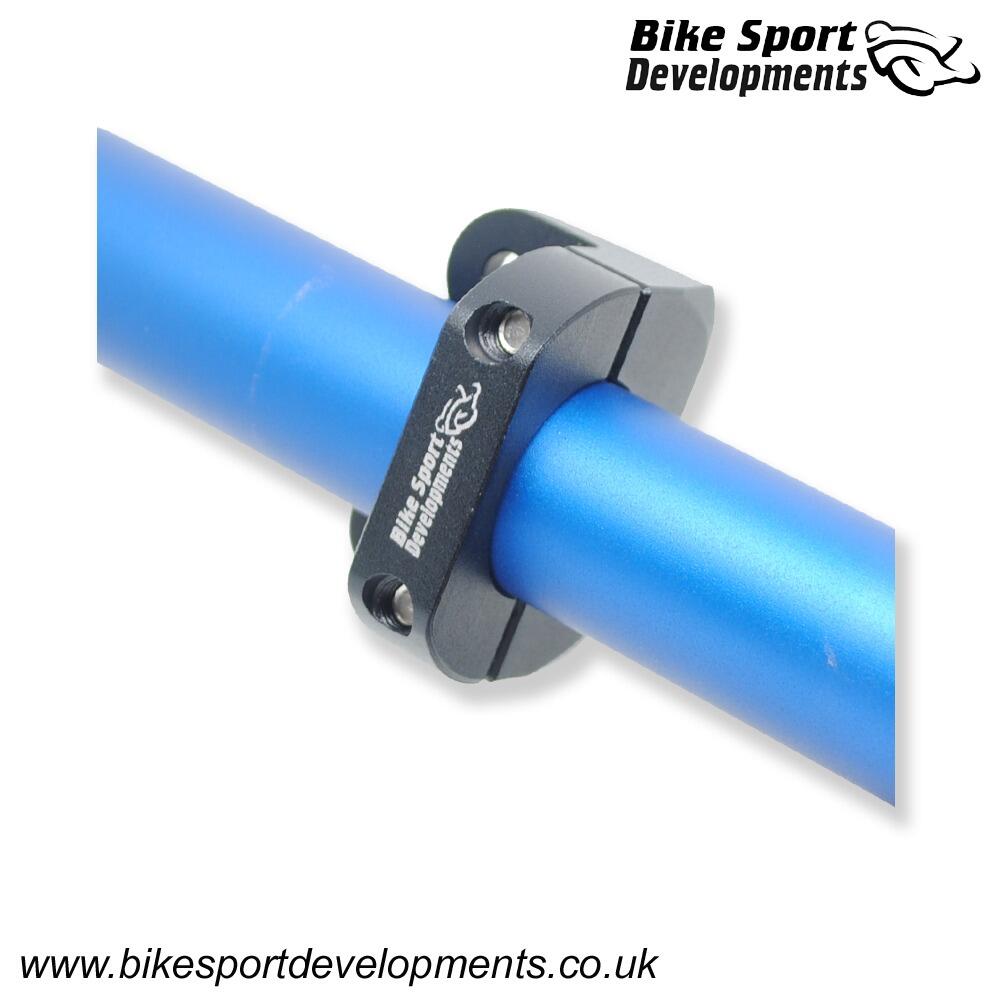

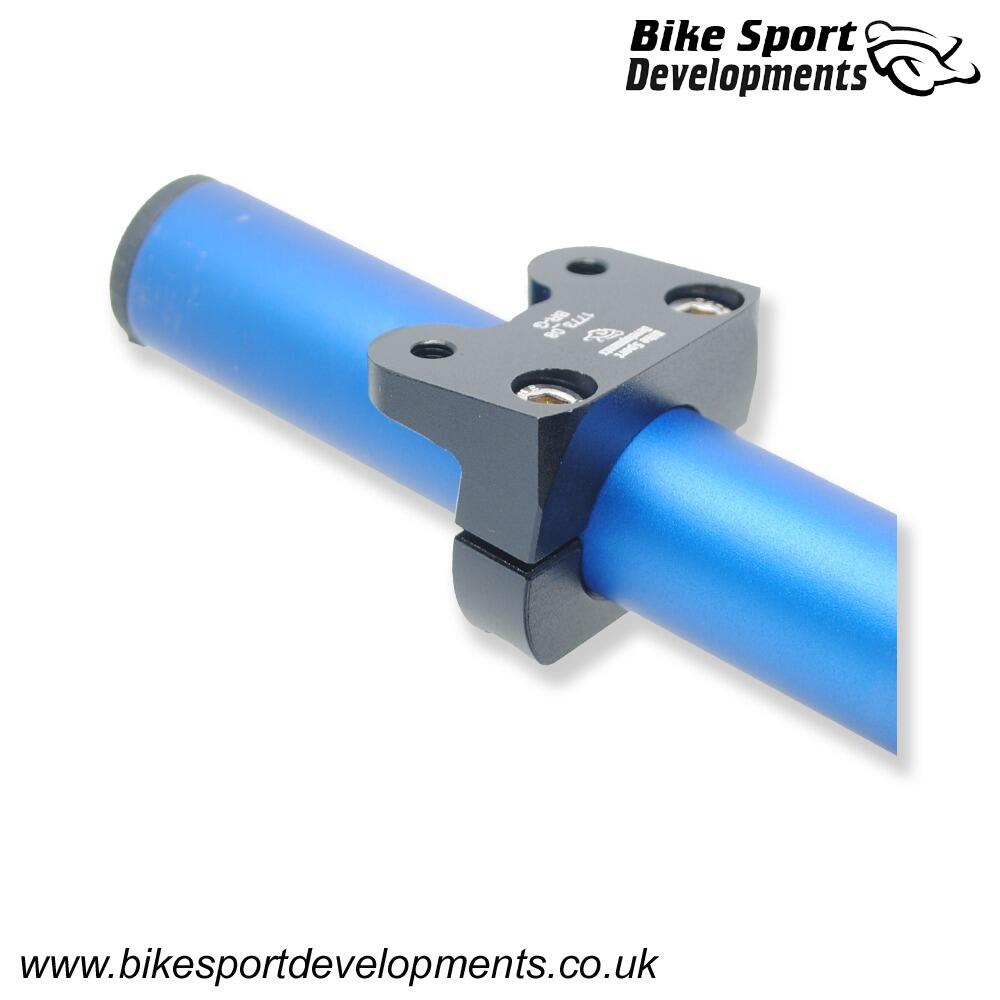

• BR-G   22mm generic bar clamp
• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components

Unless otherwise specified we will supply the BR-G clamp for this application.

Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our specialty, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
• If you are not sure, call us for advice on 0044 (0)1327 263942 - UK
• See below for compatible products
