Cordona GP ASG Superbike 420 Evo - 132mm / Ducati Streetfighter 1199R 1299

Code 420Evo_DUC_1299_1199R
£0.00
£384.00
Inc VAT
£320.00
Exc VAT
Click the image to enlarge
Code 420Evo_DUC_1299_1199R
£0.00
£384.00
Inc VAT
£320.00 Exc VAT
Save
Earn 0 reward points with this product.
  • Description

    Application : Ducati 1199R , 1299

    Model : 1199R from 2015 onward only, 1299 all models

    Year : 2015 onward (see above)

    Part Number : 420Evo_DUC_1299_1199R

    Installation : Plug N Play

    Function : Up-shift / Blip

    --

    The Cordona analogue 0-5v load cell with strain gauge technology from MotoGP, gives your gear shifts a significant upgrade in performance. You will experience a faster, smoother and more distinct gear shift performance that affect your bike chassis less than any OEM shifter. The completely sealed sensor without moving parts gives a far better reliability than any OEM shifter.

    The new introduced EVO version have a digitally ‘spring-loaded’ output signal which results in even faster shifts for many bikes from street, adventure to superbikes.

    --

    Included :

    • 132mm aluminium rod with M6 left and right threads,
    • left-right nut-stud

    Technical specification :

    • 0-5v analogue high sensitive Strain Gauge GP ASG Superbike load cell
    • strain gauge technology, no moving parts in sensor
    • linear analogue output to bike ECU, 2.5v (at neutral gear), range 300N to 0.5v/4.5v
    • the EVO version have a output signal with ‘rate dependent hysteresis’ character
    • configurable push or pull direction
    • 5-15v DC power supply
    • 20MHz processor with adaptive calibration for temperature & vibration
    • max temperature sensor 125°C (150°C for short periods), electronic module 85°C
    • temperature drift <0.04% within operation range -10°C to 125°C.
    • completely sealed and weather protected (IP68) sensor and module
    • high precision CNC machined stainless steel housing
    • dimensions; 45mm long, 14mm diameter
    • M6 ’magical’ threads, left and right threads in both sensor ends
    • CE mark (EMC radiated)

    --

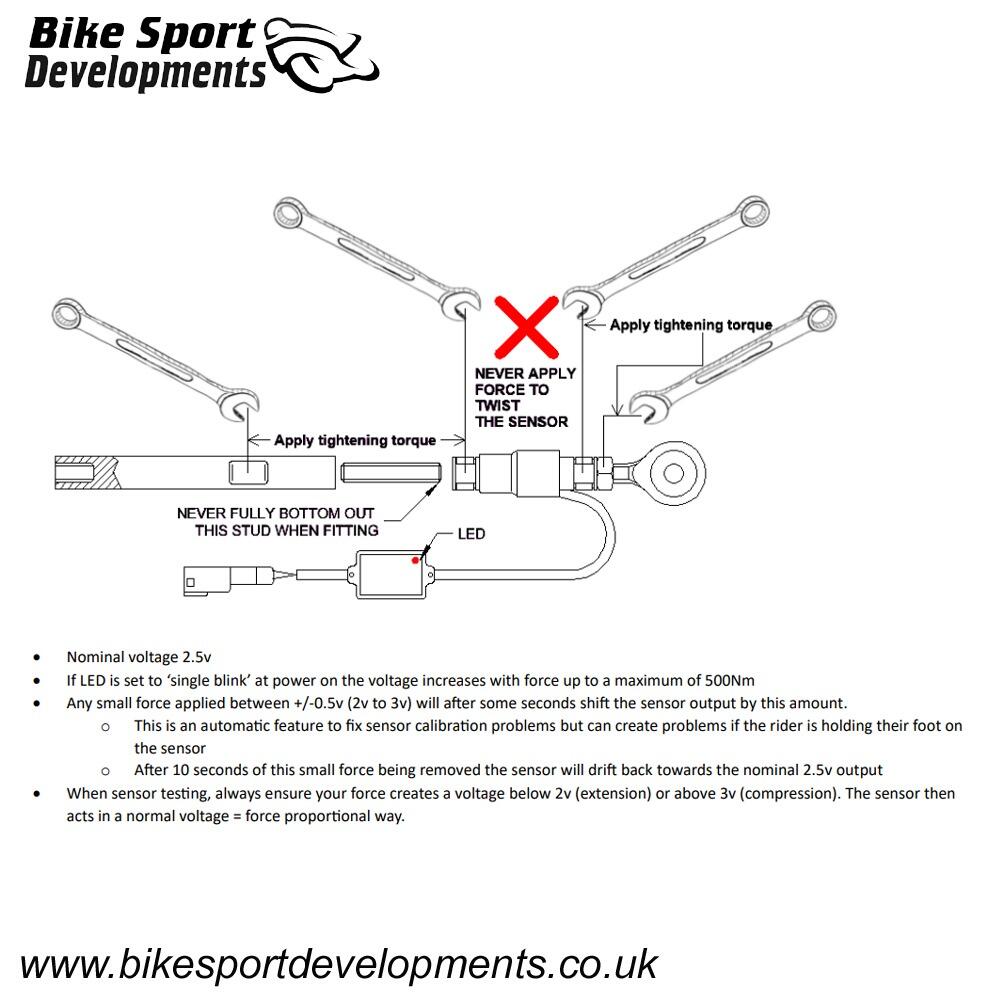

    The Cordona shifter kit will be supplied with an output direction to suit the standard bike. Should you wish to change this, use the following documents and tutorial video.

    Important note: If you are reversing the shift within the 'rear set' linkage and not changing the orientation of the lever on the engine you do not need to do anything as you are not changing for force direction as applied to the gearbox. This operation is ONLY needed if you are flipping the engine lever by 180 deg.

    Note that these will start a file download onto your PC, not open a new window.

    Changing the shift direction : Watch this Video

    Refer to Cordona manual documentation Here
